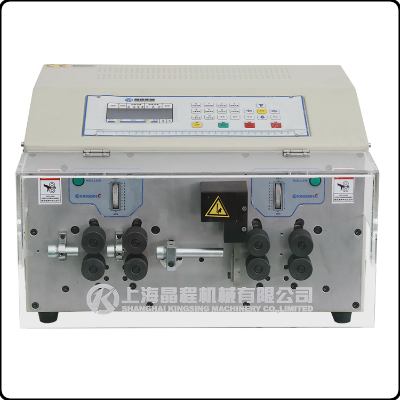

KS-09K-1 Cut Strip Machine

This KS-09K-1 Cut Strip Machine will process approximately up to 11mm outer diameter cable including mutli-conductor cables. This Cut & Strip Machine is easy to program via menu driven software and an LED display. Up to 99 different cutting & stripping programs can be stored making this machine suitable for a wide range of applications.

Category:

Description

The KS-09K-1 Cut & Strip Machine will process approximately up to 11mm outer diameter cable including multi-conductor cables. This KS-09K-1 Cut & Strip Machine is easy to program via menu driven software and LCD display. Up to 99 different cutting and stripping programs can be stored making this machine suitable for a very wide range of applications. It offers a high level of accuracy on the cutting lengths and is able to cut and strip up to 6000 pcs/hour.
Technical Data KS-09K-1 Cut Strip Machine
Available Wire Size 0.3 – 25mm sq (5-30 AWG)
Max Cable Size: Approx 11mm O.D.
Cutting Length: 5 – 20000mm
Stripping Lengths: 0-100mm Each End
Max Number Of Middle Stripping Sections: 13
Memory: 99 Programs
Drive Mode: 8 Driven Wheels
Blade Material: Hard Tungsten Steel
Voltage: 220V / 50Hz
Weight: 58Kgs
Dimensions: 400 x 515 x 345mm
