Description

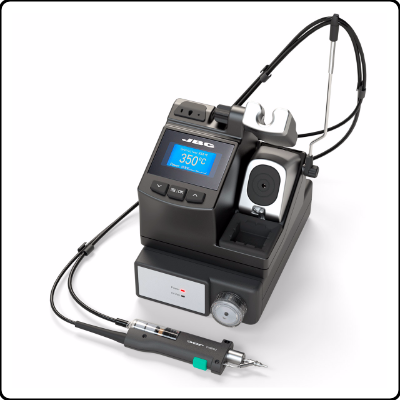

The CS Station is equipped with the MS-A Electric Pump and the comfortable DS360 Micro Desoldering Iron, which allows desoldering the smallest plated through hole components and removing solder from surface mount pads. The Station comes with the JBC exclusive Heating System and the intelligent sleep & hibernation features. Using the menu you can personalize over 20 parametes. It incorporates a USB connector (type B) to update station software and create graphs. A complete Cleaning System with antisplash membrane and wiper with sponge is integrated. It works with C360 cartridges.
SELECTABLE PARAMETERS
Temperature 180 to 450 ºC / 360 to 840 ºF
SPECIAL FEATURES
Sleep and Hibernation mode These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature: Limit the temperature range in which the operator is allowed to work.
Temperatue levels: Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection: Keep station parameters protected against unauthorized access.
OTHERS
Vacuum 75% / 570 mmHg / 22.4 inHg. Flow rate:9 SLPM
CONNECTIVITY USB-B Software PC / Firmware update
Equipotential bonding
ESD safe
Tip to ground resistance <2 ohms
POWER SUPPLY
Peak power 40 W – 23,5 V
Voltage (AC)
Ref. CS-2E – 230 V
Ambient operating temp. 10 to 40 ºC / 50 to 104 ºF
